Liquid Water Level Sensor / Horizontal Float Switch – ZPC5

Compare
  • Model: Plastic Float Switch ZPC5
  • Material:PP
  •  Max Voltage:110V

LKR 325.00

11 in stock

Description

100V  Float Switch Mini Type Poly Propy Water Level Liquid Sensor

  • Max Contact Rating 10W
  • Max Switching Voltage 100VDC
  •   Max Switching Current 0.5A
  •  Max Breakdown Voltage 220VDC
  • Max Carry Resistance 1.0A
  •  Max Contact Resistance  100mΩ
  • Temperature Rating   -10~+85°c
  • Float Ball Material    P.P
  •  Flat Body Material P.P+GF

Important

  • Do not over voltage.
  • Do not test it with high power  load , In the sensor has a Contact switch .  With higher Load, it will generate high surge current at the moment of power supply,which will damage the contact

 Way To Install

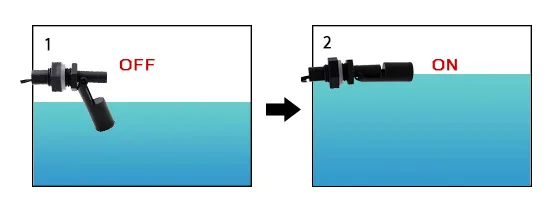

Install Way 1:
1.when the water raise,the spring is connected;
2.power on.

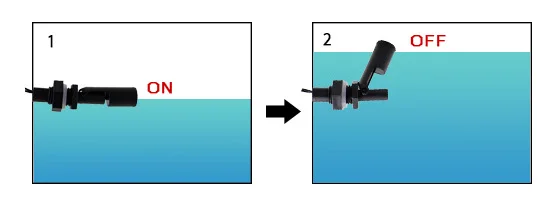

Install Way 2:
1.when the water raise,the spring is disconnected;
2.power off.





Wire Connect Way


Single Sensor Single Line

Double Sensor Three Lines

Double Sensor Four Lines

Three Sensor Four Lines

Three Sensor Six Lines

Additional information

Weight 20 g
