CNC Wegstr

Description

Introducing the WEGSTR 3-axis CNC milling machine for milling and engraving.
Its low cost, high precision and low noise operation makes it perfect for workshop, home or office use.

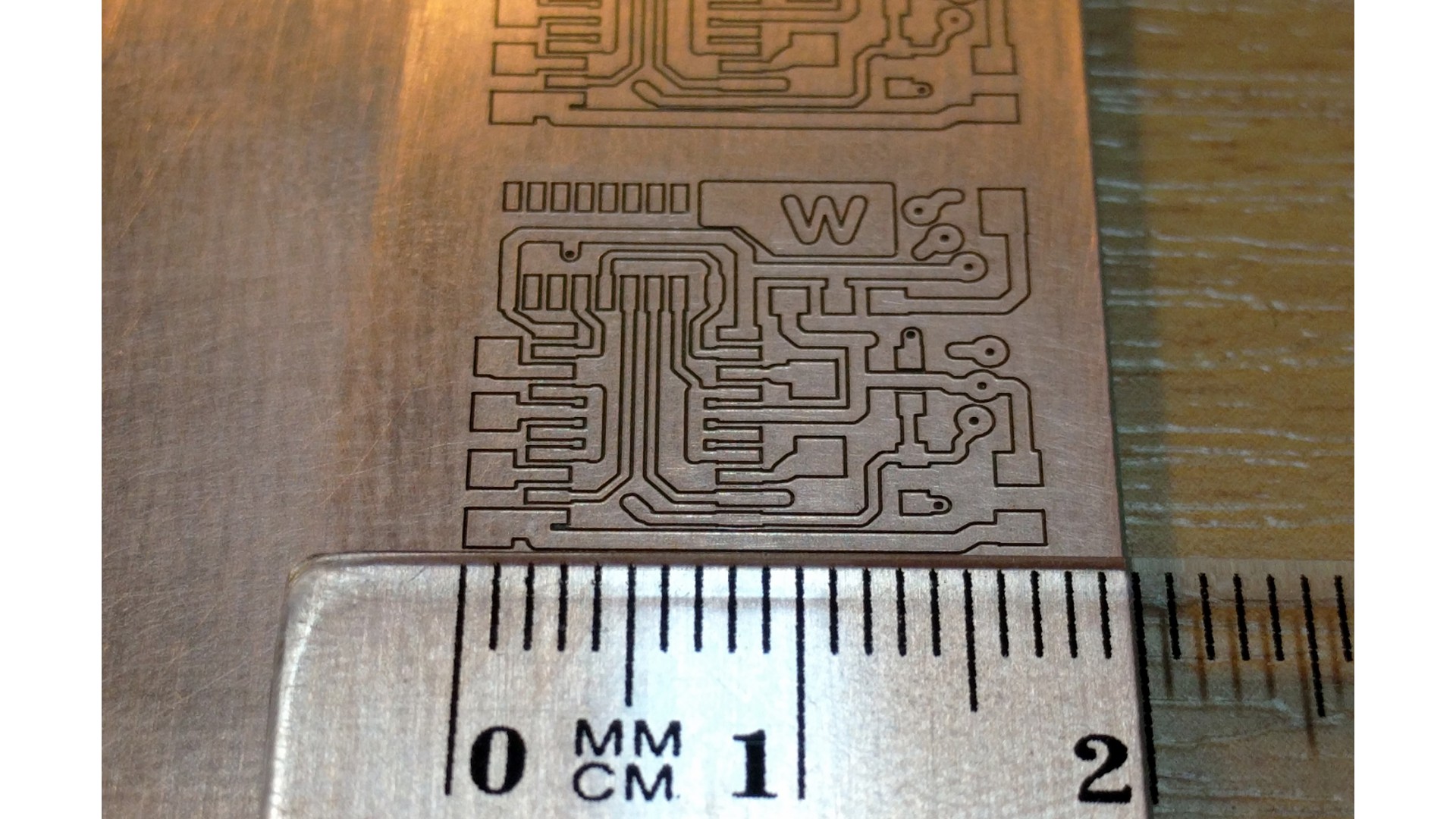

It mills both soft and hard plastic, wood, aluminium, duralumin, PCB, balsa wood, MDF, plexiglass, iron, copper, brass, bronze, gold, silver and more.
WEGSTR CNC is suitable for engineers, model makers, hobbyists, goldsmiths, jewelers, watchmakers, educational institutions and many others.

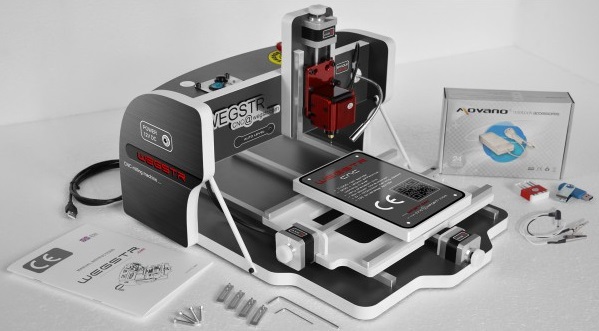

EACH WEGSTR CNC INCLUDES
– the WEGSTR CNC machine, including spindle
(the machine comes pre-assembled, no additional assembly required !!!)
– power adapter (input 100-240V AC 1.2A 50Hz, output 12V DC 5A)
– 4x extra-durable cutting bits of high quality German brand-name manufacture
– 2x Allen keys
– 4x aluminum retention clamps to hold the work piece in place
– CE declaration of conformity
– instruction manual (in English)
– cables for AUTO LEVEL
– Flash disk containing the controller application. (Project design software not included.)

Milling workspace

• 140 mm (5.51 inch) (X)
• 200 mm (7.87 inch) (Y)
• 40 mm (1.58 inch) (Z)

One step of the stepper motor  – 0.004 mm (0.000157 inch)
Machine dimensions 380 x 460 x 290 mm ( 15 x 18.1 x 11.4 inch)
Spindle – brushless motor
Diameter of spindle –-3.175 mm (0.125 inch)
Connectivity – USB
USB cable length – 1.6 m (63 inch)
Repeatability – 0.02 mm (0.000787 inch)
Machine weight – 7 kg (15,5 lbs)
Max. speed –

• X axis 170 mm/min (6,7inch/min)
• Y axis 170 mm/min (6,7inch/min)
• Z axis 170 mm/min (6,7inch/min)

Max. height of work piece – 40 mm (1.58 inch) .
Spindle speed – 11 000 rpm
PCB – AUTO LEVEL
Certification – CE
Country of origin – Czech Republic
