DC 12V three-wire brushless motor, 5000 RPM/min 47mm output shaft D-axis threaded motor, grilled fish machine motor

LKR 1,600.00

SKU: (A524) Category:

Description

Uses: grilled fish machine motor

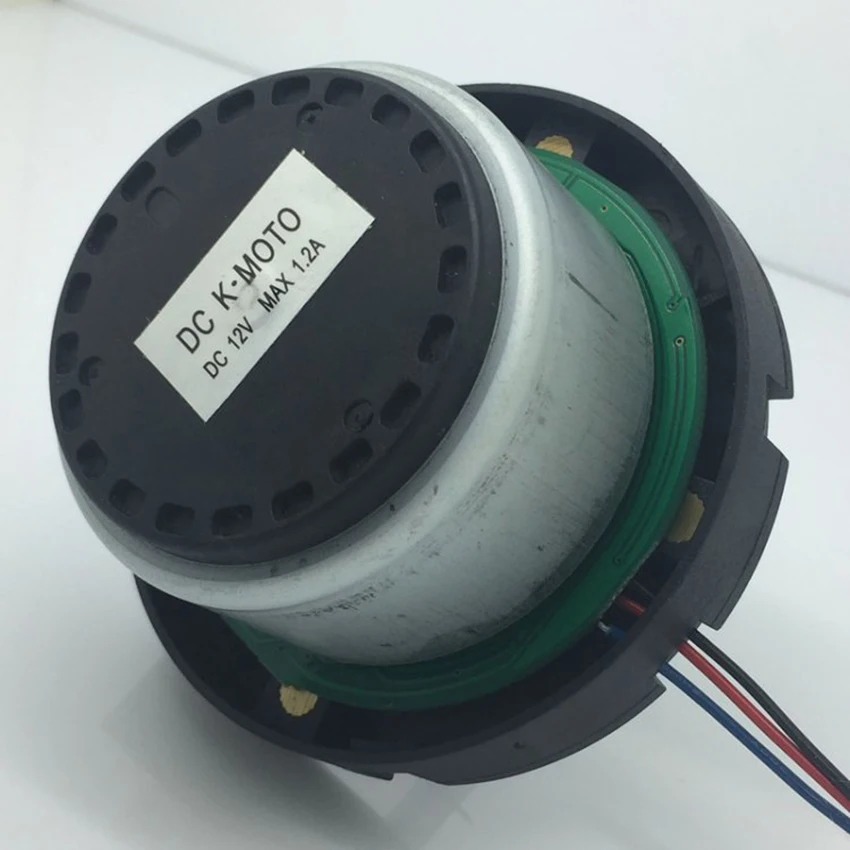

Rated voltage: DC 12V
No-load current: 100 mA
Maximum current: 1.2A
No-load speed: 5000 rpm

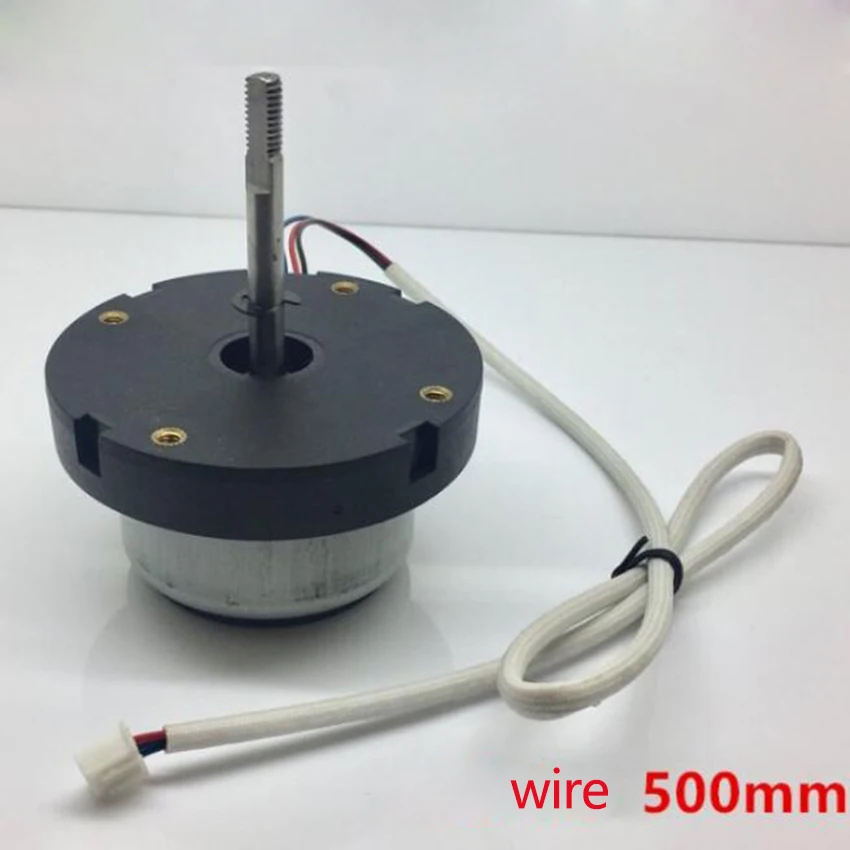

Line length: about 500mm

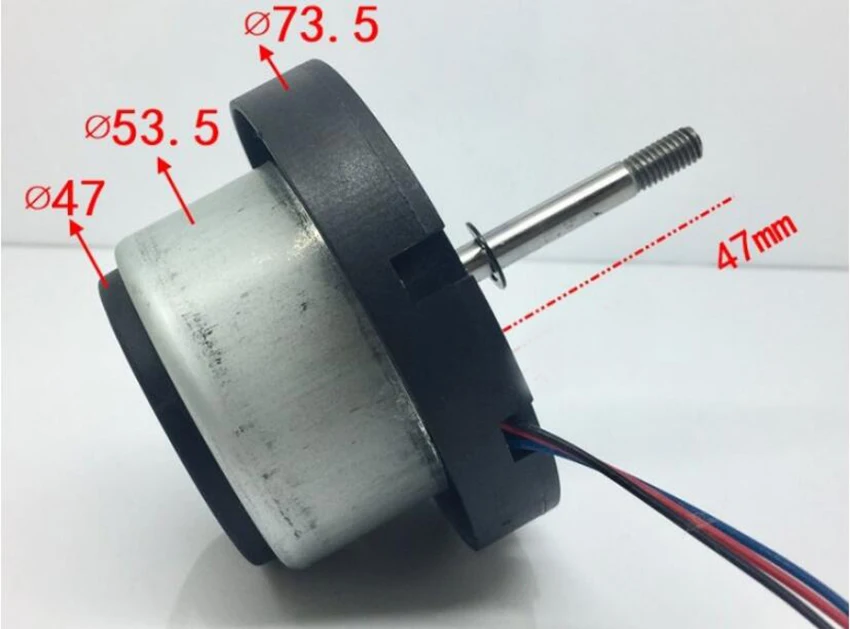

Output shaft maximum length: about 47mm

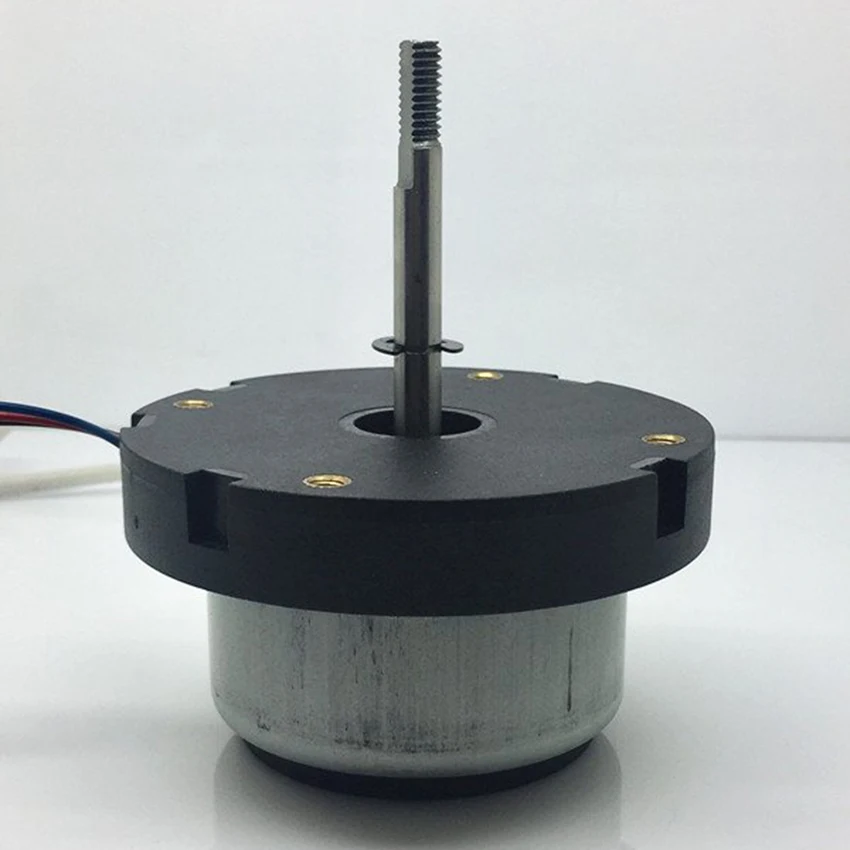

Axis type: The first segment is the D axis (with thread); the latter segment is the circular axis.

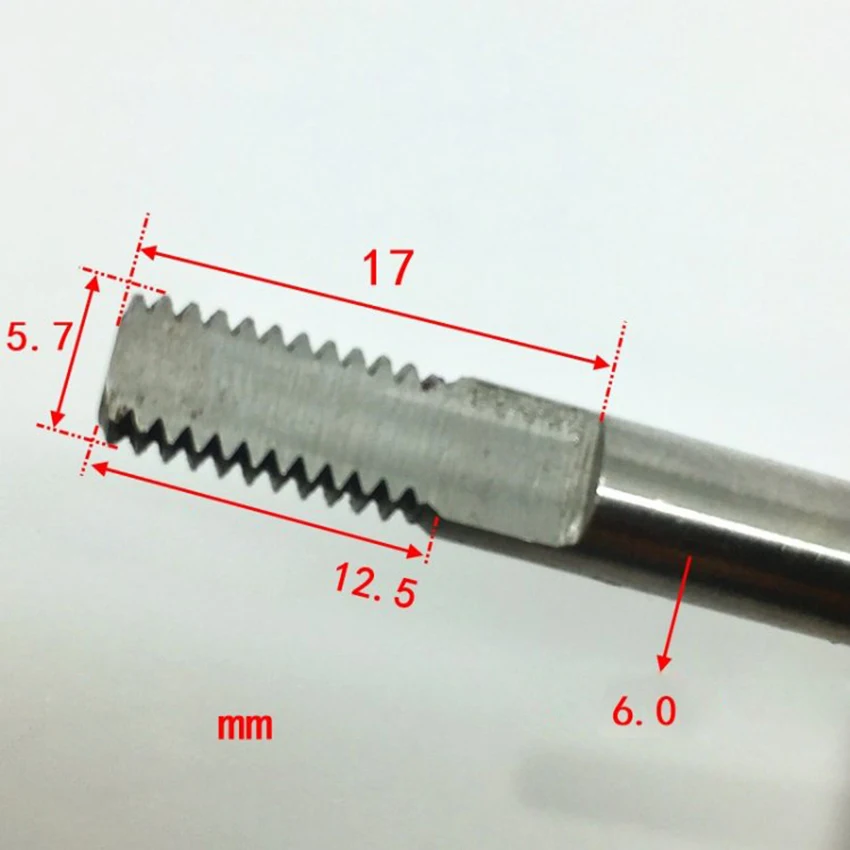

The diameter of the D-axis is 4.5 mm (the diameter of the thread is 5.7 mm); the diameter of the circular shaft is 6 mm.
​
packing include:
1pc*motor
QQ20190418090439TB2GdCatQCWBuNjy0FaXXXUlXXa_!!734227678TB2MGFotMaTBuNjSszfXXXgfpXa_!!734227678QQ20190418090457

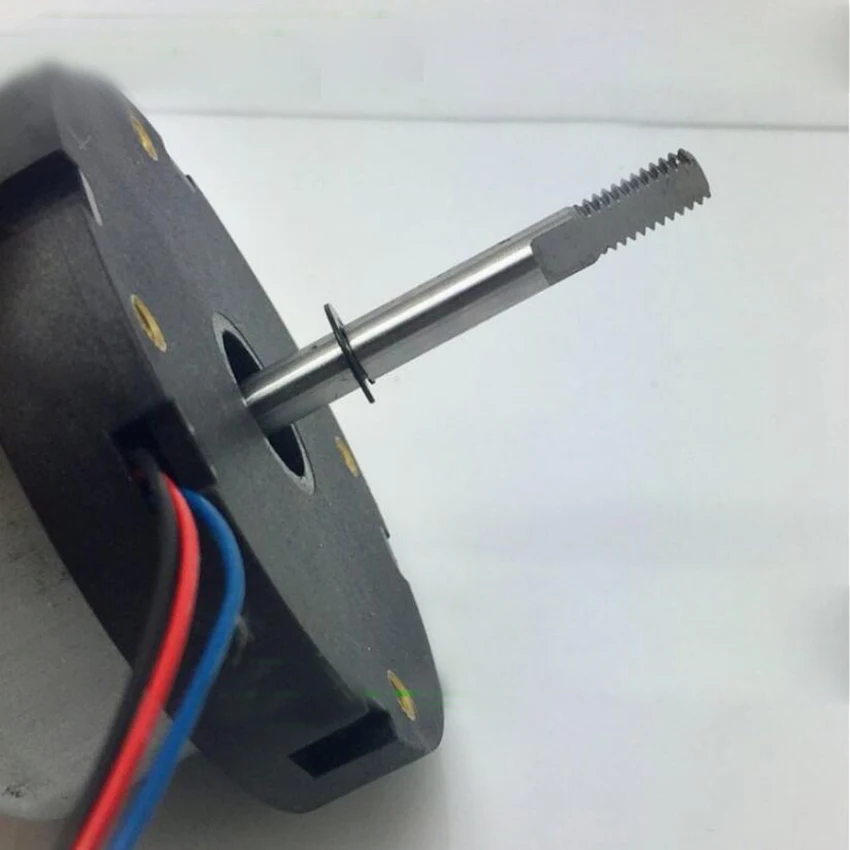

Wiring method: the red line is connected to the positive pole of the power supply, and the black line is connected to the negative pole of the power supply; thus the motor can be started. The blue line can be ignored (estimated to be speed regulated). Brushless motor can not be reversed.
QQ20190418090530TB2o7SRtNWYBuNjy1zkXXXGGpXa_!!734227678TB2ohebtL5TBuNjSspmXXaDRVXa_!!734227678TB2pE9MtQSWBuNjSszdXXbeSpXa_!!734227678
